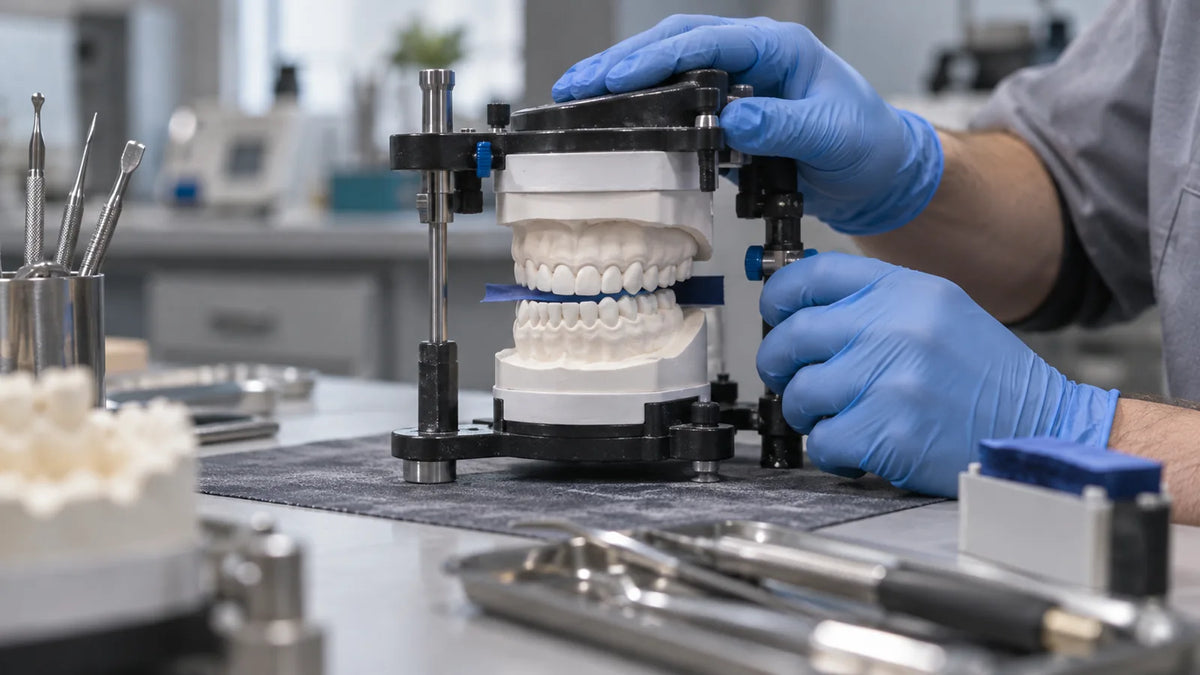

Dental cast mounting accuracy should be checked before a technician adjusts occlusion. If contact marks change from one closure to the next, the restoration may not be the only variable.
A mounted case depends on several references working together: the interocclusal record, fully seated casts, clean mounting interfaces, secure components, and a repeatable path of closure. A problem at any one of those points can make the first contact pattern look different from the next.
Research on interocclusal records has shown why a repeatability check matters. In one clinical study, variation during record making contributed more to differences in mounted-cast position than the recording material or mandibular position. The authors cautioned that a single record should not automatically be assumed to reproduce the intended relationship.
Signs the mounted reference needs attention
- The first closure marks differently from the next closure.
- A contact appears only when extra pressure is applied.
- The casts rock or do not reach a clear, stable stop.
- The contact pattern changes after a removable mounting component is detached and reseated.
- The mounted case is repeatable, but one removable die changes the contact when it is removed and replaced.
These signs do not identify one universal cause. They tell the technician to pause and isolate the reference before changing the restoration.
A five-step dental cast mounting accuracy check
1. Clean every interface
Remove stone dust, grinding debris, wax, and loose material from the cast bases, mounting plates, disposable components, and articulator contact areas. Do not force a component over debris; clean it and confirm that it seats normally.
2. Inspect the interocclusal record
Confirm that the record belongs to the case and seats without visible rocking. Look for tears, folds, warped areas, incomplete stops, or excess material that prevents the casts from reaching the intended relationship. Follow the record material manufacturer's handling and storage instructions.
3. Seat the casts and mounting components fully
Use the same components and orientation intended for the case. Confirm that each cast, plate, or disposable mounting part reaches a stable stop and that locks or retaining features are engaged according to the articulator instructions.
4. Close gently and repeat
Close the articulator without forcing the record or squeezing the casts into a different position. Open and close several times with the same light technique. Use fresh articulating paper when comparing marks so old ink does not hide a change.
5. Remove, reseat, and compare when the workflow allows
If the system uses detachable mounting parts, remove and reseat them, then repeat the closure check. A stable contact pattern after reseating supports the mounting reference. A moving pattern means the mounting, record, cast seating, or articulator should be investigated before the restoration is adjusted.
Use the change to locate the likely stage
- Stable without the bite record, inconsistent with it: inspect record seating, distortion, thickness, and handling.
- Stable until a mounting component is removed and replaced: inspect the plate, base, lock, magnet, adhesive, or disposable connection used by that system.
- Contact changes even though nothing was removed: check for debris, cast rocking, loose settings, or an articulator that is not closing freely. Follow the manufacturer's inspection and service guidance.
- The mounted casts are stable but one die changes the contact: move the diagnostic check to the die-and-base interface. Review why removable dies wobble before adjusting the restoration.
This is a process-control check, not a universal clinical tolerance. The goal is to confirm that your own case returns to the same reference before irreversible adjustment begins.
Where E-Base fits
For conventional stone cases, the LEPIO E-Base pre-pinned model system offers case-specific working bases, matching opposite components, and compatible articulation options. The integrated pin structure can simplify drilling and separate pin-placement steps, while matching opposite components can keep the mounted model compact.
E-Base does not correct an inaccurate impression, a distorted bite record, an incompletely seated cast, or an articulator used outside its instructions. The same repeatability check still applies: clean the interfaces, seat the components, close gently, repeat, and compare.
Pre-adjustment mounting checklist
- Correct case ID and interocclusal record confirmed
- Cast bases and mounting interfaces clean
- Record seats without visible rocking or forced closure
- Mounting components fully seated and secured
- Articulator closes freely according to its instructions
- Contact pattern repeats over several gentle closures
- Contact pattern remains stable after reseating detachable parts
- Individual dies checked separately if one contact changes
- Restoration adjusted only after the reference is repeatable
The takeaway
When occlusal marks move, do not assume the crown is high. First determine whether the mounted reference can reproduce the same closure. A short check can separate a restoration problem from a record, mounting, cast-seating, or die-seating problem.
If your lab is comparing compact pre-pinned stone-model workflows, review the E-Base formats or contact Innodent Solutions with the type of cases and articulator workflow you currently use.
Technical references: Eriksson et al.: Clinical factors and clinical variation influencing the reproducibility of interocclusal recording methods; Whip Mix: Utilization of the Hanau Wide-Vue Articulator and Hanau Springbow Facebow; Whip Mix: Denar Mark 330 Articulator technical resources.
